Tracking Drugs in 4D: The Future of Pharmacokinetics with Spatial Metabolomics

Understanding how drugs distribute, metabolize, and interact with different tissues is fundamental to pharmacokinetics and drug development. Yet, traditional approaches to studying drug behavior often rely on indirect measurements, making it difficult to visualize where and how a drug is acting in the body. This gap in knowledge has profound implications, as it can lead to suboptimal drug dosing, unintended side effects, or ineffective treatments.

Fortunately, advances in biomedical imaging and metabolomics have introduced spatial metabolomics, a cutting-edge technology that allows researchers to map drug distribution and metabolism with unprecedented precision. By integrating mass spectrometry imaging (MSI) with metabolomics, spatial metabolomics provides a powerful tool to explore the intricate spatiotemporal journey of drugs within tissues. This article explores how spatial metabolomics is revolutionizing pharmacokinetics, uncovering hidden patterns of drug behavior, and shaping the future of precision medicine.

See metabolic changes in space with up to 5µm resolution, Inquiry Now!

 Why We Need to “See” Drug Distribution?

Traditional pharmacokinetic (PK) studies have long relied on blood sampling to infer drug behavior in the body. However, this approach is akin to the parable of blind men feeling an elephant—each measurement provides a fragmented understanding, leaving crucial questions unanswered:

• Has the drug treatment exerted its intended effect?
• Where in the body is the drug acting?
• How exactly does the drug interact with different tissues?

Spatial metabolomics, a rapidly emerging biomedical research technique, has revolutionized how we study drug behavior. This technology combines mass spectrometry imaging (MSI) with metabolomics to qualitatively, quantitatively, and spatially map metabolites within tissues and organs. By overcoming the limitations of conventional metabolomics, which lacks spatial resolution, spatial metabolomics provides an unprecedented level of insight into drug distribution, metabolism, and tissue-specific interactions.

In recent years, the application of spatial metabolomics in pharmacokinetics has garnered increasing attention. This technology allows researchers to visualize how drugs distribute across different tissues, track their metabolic transformations, and understand their interactions with cellular microenvironments. These insights are invaluable for:

• Identifying drug targets and tissue specificity
• Understanding drug accumulation and clearance patterns
• Evaluating drug efficacy and toxicity
• Designing more effective therapeutics
• Investigating pharmacokinetics in different pathological states to support personalized medicine and precision healthcare.

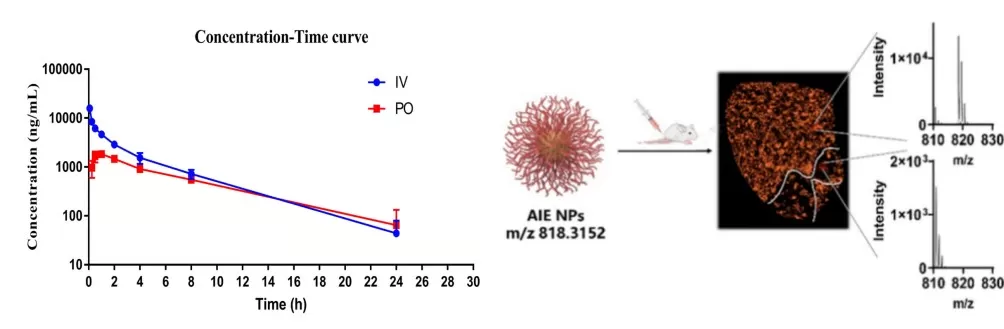

Figure 1 | Traditional Detection (Left) Shows Blood Drug Concentration Changes, While Spatial Metabolomics (Right) Maps Drug Accumulation in Tumor Regions

Traditional PK studies primarily rely on plasma concentration measurements, which only offer an indirect view of drug behavior. While these studies provide essential pharmacokinetic parameters such as half-life, bioavailability, and clearance rates, they lack spatial resolution. In contrast, spatial metabolomics enables a direct, high-resolution visualization of drug and metabolite distributions within tissues. For example, in oncology research, understanding how a drug accumulates in different regions of a tumor can guide targeted therapy development. Similarly, in neuropharmacology, knowing how a drug crosses the blood-brain barrier and distributes within different brain regions can significantly impact drug design for neurodegenerative diseases.

How Spatial Metabolomics is Transforming Pharmacokinetics?

Spatial metabolomics provides a structured approach to studying drug metabolism and distribution in tissues. The process typically involves four key steps:

Step 1: Precise Spatiotemporal Sampling

The first step in spatial metabolomics involves selecting appropriate animal models (such as rats, mice, or rabbits) and administering the drug under investigation. Tissue samples are collected at different time points to capture dynamic changes in drug distribution. Key target organs include:

• Primary metabolic organs (liver, kidneys, heart, lungs, brain)
• Tissue-specific sites of drug action (e.g., tumors, inflammatory sites)
• Pathological models (e.g., cancer models, diabetic models) to compare drug behavior in diseased vs. healthy tissues.

Once collected, tissue samples undergo cryosectioning, where they are frozen and sliced into thin sections (10–20 μm) to preserve the spatial integrity of metabolites.

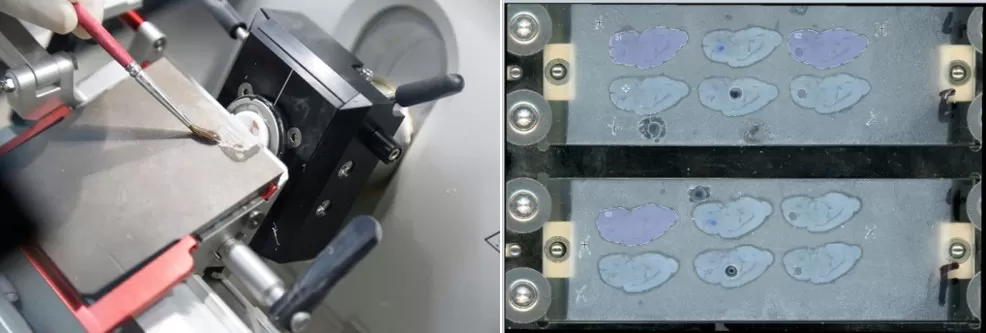

Figure 2 | Illustration of Tissue Sectioning

Step 2: High-Resolution Imaging

To visualize the spatial distribution of drugs and metabolites, mass spectrometry imaging (MSI) techniques such as MALDI-MSI (Matrix-Assisted Laser Desorption/Ionization) or DESI-MSI (Desorption Electrospray Ionization) are applied. These techniques allow for:

• Non-targeted, label-free imaging of drug compounds and their metabolites
• High spatial resolution mapping of drugs within tissues
• Correlation with histological staining (e.g., H&E staining, immunohistochemistry) to align metabolic information with tissue morphology.

This step enables researchers to generate a spatial distribution map that highlights how the drug and its metabolites localize across different tissue regions.

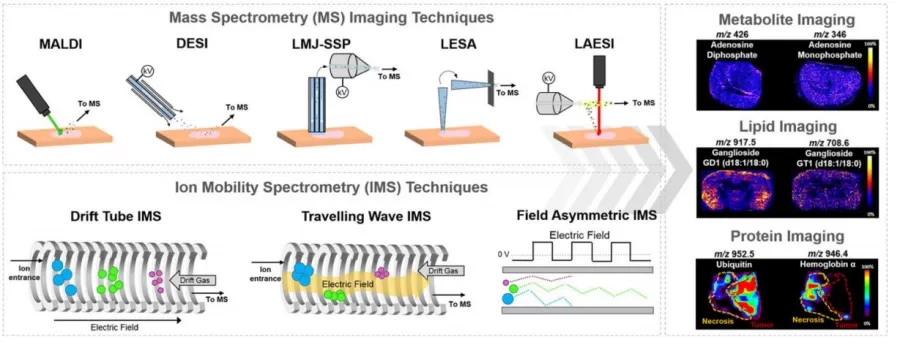

Figure 3 | Schematic Representation of IMS and MSI Technologies

Step 3: Advanced Data Analysis

The vast amount of data generated by MSI requires sophisticated computational analysis. Data processing includes:

• Preprocessing (noise reduction, normalization, peak extraction)
• Multivariate statistical analysis (Principal Component Analysis (PCA), Partial Least Squares Discriminant Analysis (PLS-DA)) to identify significant metabolite patterns
• Metabolic pathway reconstruction to determine how the drug is transformed and eliminated
• Correlation with histological and biological data to interpret pharmacological effects

By analyzing spatial metabolite distributions, researchers can distinguish between drug accumulation zones, metabolic hotspots, and potential off-target effects.

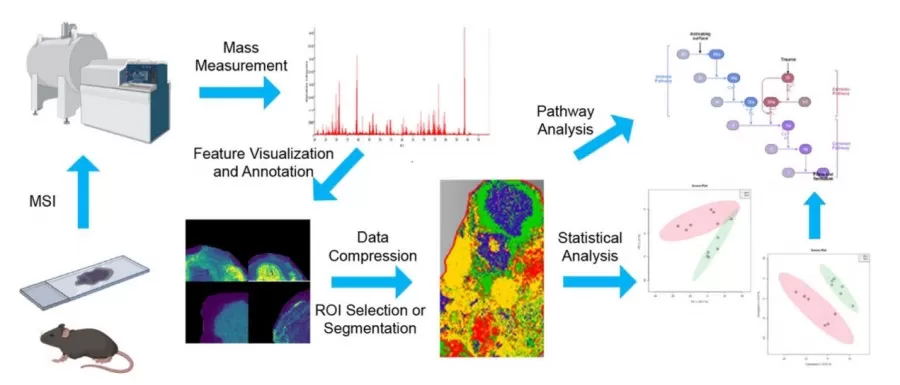

Figure 4 | Data Analysis Workflow

Step 4: Mechanistic Validation

To confirm the accuracy of MSI-based spatial metabolomics, researchers perform targeted validation using techniques such as LC-MS/MS (Liquid Chromatography-Mass Spectrometry). This allows for precise quantification of drug concentrations in different tissues. Furthermore, combining these findings with mechanistic studies—such as receptor binding assays or genetic analyses—helps elucidate drug action mechanisms and predict pharmacokinetic behavior in clinical settings.

Pioneering Applications of Spatial Metabolomics in Pharmacokinetics

Case 1: Studying Nanoparticle Drug Behavior in Tumors

A study published in ACS Nano utilized label-free MSI to investigate the in vivo behavior of aggregation-induced emission nanoparticles (TPA-diCN NPs). By leveraging spatial metabolomics, they assessed:

• The efficiency of nanoparticle delivery to tumor tissues
• The spatial distribution of nanoparticles within tumors
• The metabolic changes induced by nanoparticles in cancer cells

This study provided critical insights into nanoparticle-based drug delivery, paving the way for optimizing targeted cancer therapies.

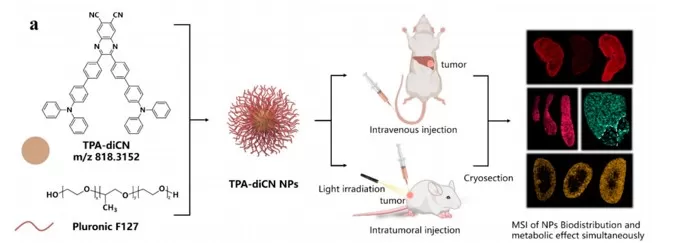

Figure 5 | Study Design and Analytical Workflow (Chen et al., 2023)

Case 2: Mapping Drug Effects in Pulmonary Fibrosis

Another study, published in the Journal of Pharmaceutical Analysis explored the spatial metabolic heterogeneity in lung tissues. By applying spatial metabolomics, researchers discovered that Prismatomeris connate extract (HG-2) exhibited significant anti-pulmonary fibrosis effects.

Key findings included:

• The identification of metabolite distribution differences in fibrotic vs. normal lung tissue
• Insights into HG-2’s therapeutic mechanism through metabolic network analysis
• The localization of drug activity, which guided further investigations into its clinical potential

This study demonstrated how spatial metabolomics can reveal drug mechanisms and optimize therapeutic strategies.

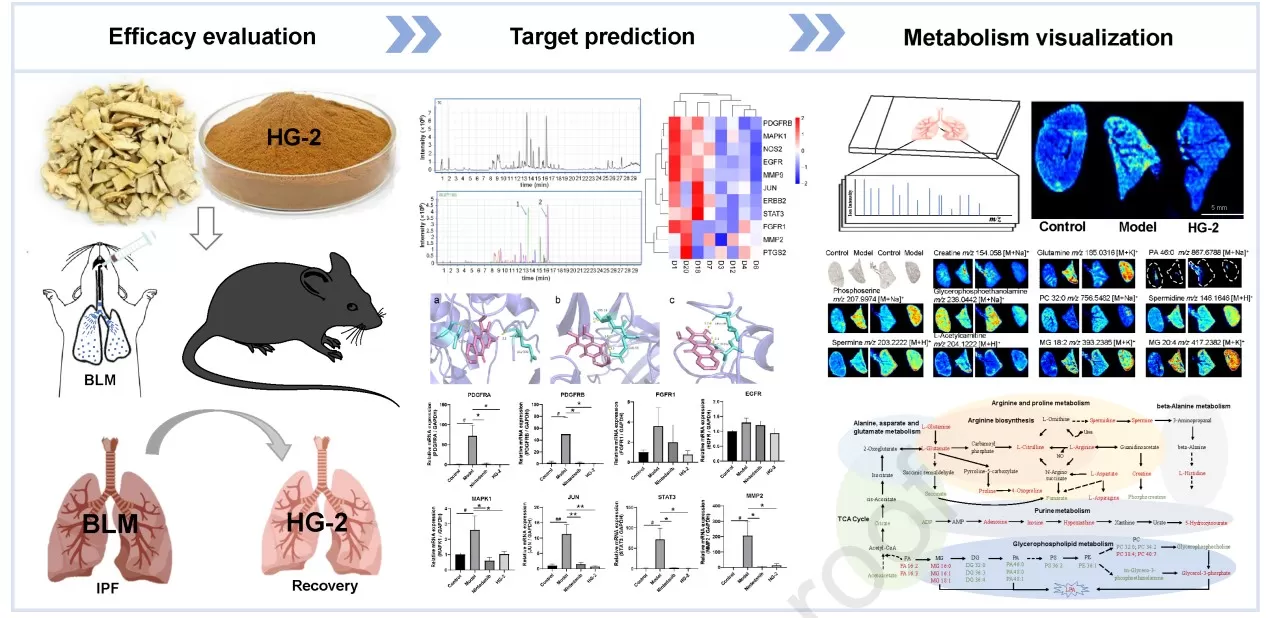

Figure 6 | Study Design and Analytical Workflow (Jiang et al., 2024)

The Future of Spatial Metabolomics in Drug Development

As pharmaceutical sciences evolve, spatial metabolomics is set to become a cornerstone in pharmacokinetic research. Future applications may include:

• Personalized drug dosing based on patient-specific metabolomic profiles
• Precision medicine strategies for optimizing drug delivery and minimizing side effects
• Integration with AI and machine learning for automated data analysis and predictive modeling
• Expanded use in clinical pharmacokinetics to bridge the gap between preclinical research and human trials

By offering a “God’s eye view” of drug distribution, spatial metabolomics holds immense potential to revolutionize drug discovery, improve therapeutic efficacy, and drive precision medicine forward.

Reference

Chen J, Mao L, Jiang Y, et al. Revealing the In Situ Behavior of Aggregation-Induced Emission Nanoparticles and Their Biometabolic Effects via Mass Spectrometry Imaging. ACS Nano. 2023;17(5):4463-4473. doi:10.1021/acsnano.2c10058

Jiang H, Zheng B, Hu G, et al. Spatially resolved metabolomics visualizes heterogeneous distribution of metabolites in lung tissue and the anti-pulmonary fibrosis effect of Prismatomeris connate extract. J Pharm Anal. 2024;14(9):100971. doi:10.1016/j.jpha.2024.100971
