Top 6 Ion Sources in Mass Spectrometry: EI, CI, ESI, APCI, APPI, and MALDI

In the intricate world of mass spectrometry (MS), ion sources are the unsung heroes that make or break your analysis. Though often overlooked, these critical components are the first step in transforming molecules into measurable ions. In this blog, we’ll dive deep into the fascinating world of ion sources, exploring their types, applications, and how to choose the right one for your analytical needs. Whether you're a seasoned scientist or new to mass spectrometry, this guide will help you understand the key role of ion sources in modern analytical chemistry.

What is an Ion Source? The Gateway to Mass Spectrometry

An ion source is the gateway to mass spectrometry, responsible for converting neutral molecules or atoms into charged ions. Without ionization, mass spectrometers would be unable to detect or analyze samples. Ion sources work by imparting a charge to the analyte, allowing it to be manipulated by electric and magnetic fields within the mass spectrometer. The choice of ionization method depends on the analyte's properties, such as volatility, polarity, and thermal stability. From small organic molecules to large biomolecules, ion sources are tailored to handle a wide range of compounds, making them indispensable in fields like proteomics, metabolomics, and environmental analysis.

See metabolic changes in space with up to 5µm resolution.

Hard Ionization vs. Soft Ionization: Choosing the Right Energy Level

Ionization techniques fall into two broad categories: hard ionization and soft ionization, each with unique mechanisms and applications.

Hard Ionization techniques, such as Electron Ionization (EI), use highenergy processes to ionize molecules, often resulting in extensive fragmentation. This fragmentation provides detailed structural information, making hard ionization ideal for analyzing small, stable molecules. For example, EI is widely used in gas chromatographymass spectrometry (GCMS) for identifying volatile organic compounds. However, hard ionization can be too harsh for fragile molecules, leading to their destruction.

Soft Ionization methods, like Electrospray Ionization (ESI) and Matrix Assisted Laser Desorption Ionization (MALDI), use gentler energy inputs to preserve the integrity of the analyte. These techniques are perfect for analyzing large biomolecules, such as proteins and peptides, as they generate intact molecular ions with minimal fragmentation. Soft ionization has revolutionized fields like proteomics and drug discovery, enabling the analysis of complex biological samples with high sensitivity and accuracy.

Exploring Common Ion Sources: EI, CI, ESI, APCI, APPI, and MALDI

1. Electron Ionization (EI): The Gold Standard for Small Molecules

EI, one of the oldest and most widely used ionization methods, exemplifies hard ionization. In EI, a heated filament emits highenergy electrons (70 eV) that collide with gaseous analyte molecules, ejecting electrons to form positively charged ions. The resulting fragmentation patterns are highly reproducible, facilitating structural elucidation via spectral libraries. EI excels in analyzing volatile, thermally stable compounds, such as hydrocarbons and small organic molecules. Its limitations include poor performance with nonvolatile or thermally labile substances and weak molecular ion signals for certain compounds. Despite these drawbacks, EI remains a gold standard for gas chromatographymass spectrometry (GCMS) due to its robustness and rich spectral databases.

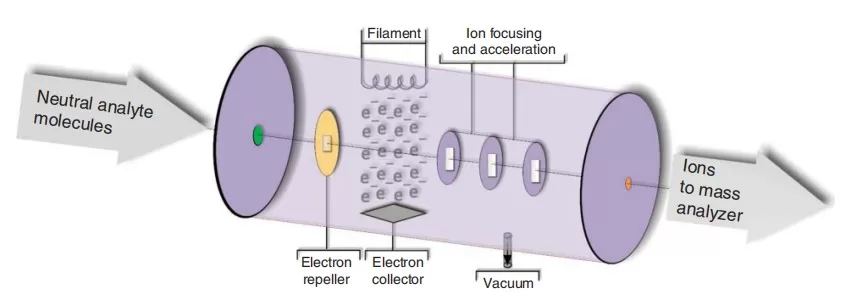

Schematic diagram of an electron ionization (EI) source (Correa Ceballos and Niessen, 2017)

2. Chemical Ionization (CI): A Gentler Approach to Ionization

Chemical Ionization (CI) offers a milder alternative to EI by utilizing reagent gases (e.g., methane or ammonia) to ionize analytes via ionmolecule reactions. Instead of direct electron bombardment, analyte molecules interact with reagent ions (e.g., CH₅⁺), forming protonated or adduct ions. CI produces stronger molecular ion signals and fewer fragments, making it suitable for molecular weight determination of moderately stable compounds. However, its reproducibility is inferior to EI, and optimization of reagent gas conditions is often required. CI is particularly useful for analyzing compounds prone to fragmentation under EI conditions, such as steroids or alkaloids.

3. Electrospray Ionization (ESI): Revolutionizing Biomolecule Analysis

Electrospray Ionization (ESI) has transformed the analysis of large biomolecules by enabling their gentle ionization. In ESI, a sample solution is sprayed through a charged capillary, producing fine, charged droplets. As the solvent evaporates, analyte molecules desorb as multiply charged ions, reducing their masstocharge ratio (m/z) for detection. ESI is highly compatible with liquid chromatography (LCMS), making it the goto technique for analyzing polar compounds, peptides, and proteins. Its limitations include susceptibility to matrix effects and strict flow rate requirements. ESI has become a cornerstone of proteomics and metabolomics research, enabling the analysis of complex biological samples with high sensitivity.

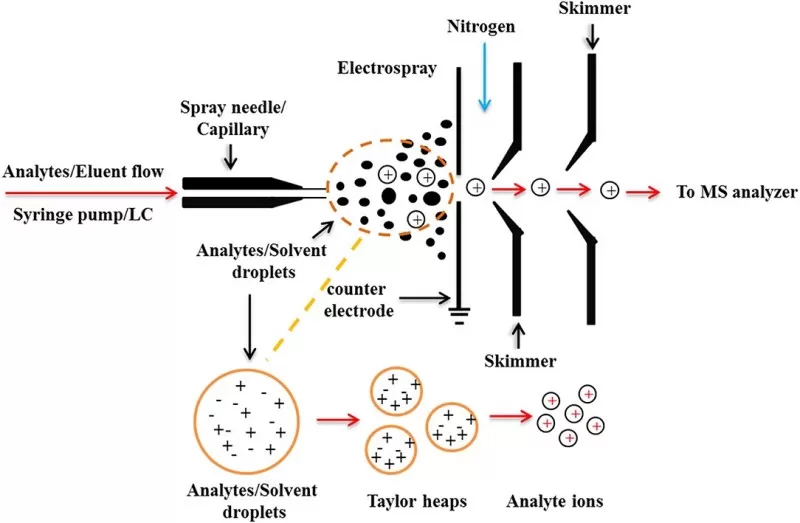

The schematic workflow of typical ESI ionization processes (Chen et al., 2019)

4. Atmospheric Pressure Chemical Ionization (APCI): Bridging the Gap for SemiVolatile Compounds

Atmospheric Pressure Chemical Ionization (APCI) combines nebulization with chemical ionization to analyze semivolatile and thermally stable compounds. In APCI, the sample is nebulized into a heated chamber, where a corona discharge ionizes solvent molecules. These ions then transfer charge to analyte molecules via gasphase reactions. APCI is particularly effective for analyzing small molecules, such as pharmaceuticals and lipids, and it tolerates higher buffer concentrations compared to ESI. However, APCI requires thermal stability and optimized gas flow conditions, making it less suitable for fragile biomolecules.

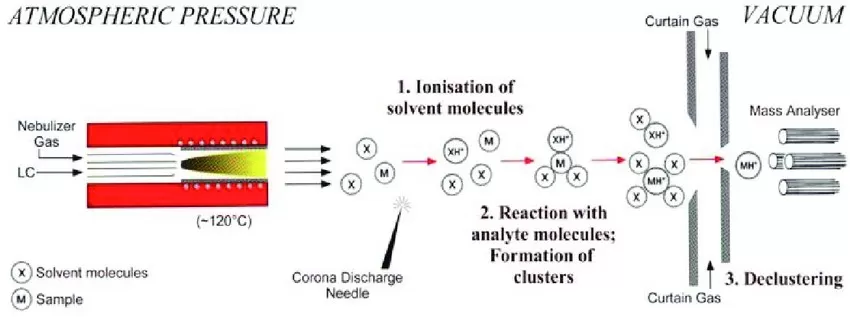

Atmospheric pressure chemical ionisation mechanism (Dubey 2020)

5. Atmospheric Pressure Photoionization (APPI): A Niche Tool for NonPolar Compounds

Atmospheric Pressure Photoionization (APPI) uses ultraviolet light to ionize nonpolar compounds, which are challenging for ESI and APCI. Photons from a krypton or xenon lamp ionize dopants (e.g., toluene), which subsequently transfer charge to analyte molecules. APPI is particularly useful for analyzing polyaromatic hydrocarbons (PAHs) and lipids, but it exhibits low efficiency for polar compounds. Its simplicity and specificity make it a valuable tool in petrochemical and environmental analyses.

6. Matrix Assisted Laser Desorption Ionization (MALDI): Unlocking the Secrets of Large Biomolecules

Matrix Assisted Laser Desorption Ionization (MALDI) is a soft ionization technique that enables the analysis of large biomolecules, such as proteins and nucleic acids. In MALDI, the sample is mixed with a lightabsorbing matrix and irradiated with a laser pulse, causing desorption and ionization of the analyte. MALDI produces predominantly singly charged ions, making it ideal for mass spectrometry imaging (MSI) and top-down proteomics. However, MALDI is less suited for quantitative analysis due to matrix interference and variability in ionization efficiency. MALDI imaging, a cuttingedge application, allows spatial mapping of biomolecules in tissues, advancing fields like cancer research.

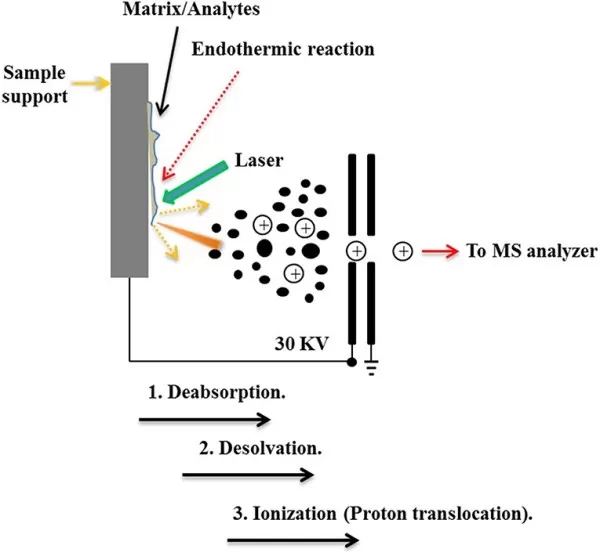

The schematic workflow of the typical MALDI ionization processes (Chen et al., 2019)

How to Choose the Right Ion Source for Your Analysis

Selecting the appropriate ion source is crucial for achieving accurate and reliable results in mass spectrometry. The choice depends on several factors, including the analyte's physical and chemical properties, the complexity of the sample matrix, and the analytical goals. For example, if you're analyzing volatile small molecules, EI or CI paired with GCMS is likely the best choice. For polar or macromolecular analytes, such as proteins or metabolites, ESI or MALDI coupled with LCMS is more suitable. APCI and APPI are excellent for semivolatile or nonpolar compounds, bridging the gap between GCMS and LCMS applications. By understanding the strengths and limitations of each ion source, you can optimize your analytical workflow and achieve superior results.

Conclusion: The Critical Role of Ion Sources in Modern Mass Spectrometry

Ion sources are the unsung heroes of mass spectrometry, playing a pivotal role in transforming molecules into measurable ions. From EI's robust fragmentation to MALDI's gentle macromolecular ionization, each technique offers unique advantages for specific applications. As mass spectrometry continues to evolve, innovations in ionization methods will unlock new possibilities in omics, clinical diagnostics, and material science. By understanding the principles and applications of ion sources, scientists can harness their full potential to advance research and discovery.
