Deciphering Protein Tertiary Structure: Advanced Characterization Techniques and Their Implications

Protein tertiary structure represents the threedimensional arrangement of a polypeptide chain, emerging from the folding and packing of secondary structural elements (α-helices, β-sheets) and structural domains. This intricate architecture determines a protein’s biological function, interactions, and stability. Understanding tertiary structure is pivotal for unraveling mechanisms in enzymology, drug discovery, and disease pathology.



What Defines Protein Tertiary Structure?

The tertiary structure arises from the spatial organization of all atoms in a protein, stabilized by a delicate balance of noncovalent interactions and covalent bonds. Key contributors include:

  • Hydrophobic interactions: Nonpolar side chains cluster inward, minimizing contact with water.
  • Hydrogen bonds: Form between polar groups, stabilizing secondary structures and sidechain interactions.
  • Van der Waals forces: Weak attractions between adjacent atoms contribute to compact folding.
  • Electrostatic interactions: Salt bridges between charged residues (e.g., lysine and glutamate) enhance stability.
  • Disulfide bonds: Covalent linkages between cysteine residues act as molecular "staples," particularly in extracellular proteins.



The final structure is a thermodynamically favorable conformation where hydrophobic cores are shielded, and hydrophilic residues face the aqueous environment. This architecture enables proteins to perform roles as enzymes, receptors, or structural scaffolds.

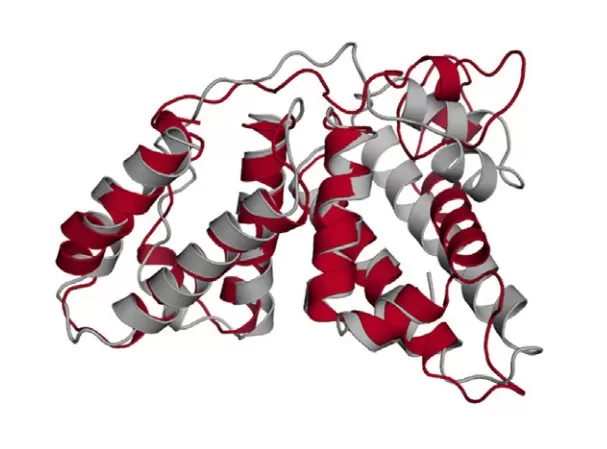

Schematic of protein tertiary structure (Schneider et al., 2018)

Schematic of protein tertiary structure (Schneider et al., 2018)



Techniques for Characterizing Tertiary Structure

Three primary experimental methods dominate the field, each with unique strengths and limitations:

1. Xray Crystallography

Xray diffraction patterns from protein crystals are analyzed to determine atomic positions. When Xrays strike a crystal, electrons scatter the radiation, generating a diffraction pattern. Mathematical reconstruction (e.g., Fourier transforms) yields a 3D electron density map, revealing atomiclevel details.

Advantages:

  • Ultrahigh resolution: Achieves resolutions of 0.1–0.3 nm, visualizing individual atoms and sidechain conformations.
  • Broad applicability: Suitable for large proteins and complexes (e.g., ribosomes).
  • Structural precision: Provides static, highfidelity models critical for drug design.

Challenges:

  • Crystallization bottleneck: Many proteins resist crystallization due to flexibility or solubility issues.
  • Radiation damage: Prolonged Xray exposure degrades crystals, complicating data collection.
  • Timeintensive: From purification to structure solution, the process may span months.

2. Nuclear Magnetic Resonance (NMR) Spectroscopy

NMR detects magnetic properties of atomic nuclei (e.g., ^1H, ^13C, ^15N) in a strong magnetic field. Resonance frequencies depend on the local chemical environment, allowing assignment of atomic positions. Distance restraints from nuclear Overhauser effects (NOEs) and residual dipolar couplings (RDCs) are used for structure calculation.

Advantages:

  • Solutionstate studies: Structures are determined under nearphysiological conditions.
  • Dynamic insights: Captures conformational flexibility and transient states (e.g., enzyme active sites).
  • No crystallization required: Ideal for membrane proteins or intrinsically disordered regions.

Limitations:

  • Size constraints: Spectral overlap limits resolution for proteins >30 kDa, though isotopic labeling (^2H, ^13C) helps.
  • Sample demands: Requires high purity and concentration (~1 mM).
  • Computational complexity: Data analysis relies on sophisticated algorithms and modeling.

3. CryoElectron Microscopy (CryoEM)

CryoEM images vitrified protein samples at cryogenic temperatures. Thousands of 2D projections are computationally reconstructed into 3D density maps using software like RELION or CryoSPARC.

Advantages:

  • Nearatomic resolution: Modern detectors (e.g., Direct Electron Devices) achieve resolutions <2 Å, rivaling crystallography.
  • Versatility: Analyzes large complexes (e.g., viral capsids) and flexible proteins without crystallization.
  • Minimal sample prep: Rapid freezing preserves native conformations.

Challenges:

  • Beaminduced damage: Prolonged electron exposure disrupts samples, necessitating lowdose imaging.
  • Data processing: Requires substantial computational power and expertise.
  • Heterogeneity issues: Sample variability can complicate reconstruction.



Choosing the Right Tool

The optimal technique depends on the protein’s properties and research goals:

  • Atomic details: Xray crystallography or CryoEM.
  • Dynamic behavior: NMR.
  • Large complexes: CryoEM.

Hybrid approaches, such as integrating CryoEM with molecular dynamics simulations, are increasingly popular for capturing both static and dynamic structural features.



Implications and Future Directions

Decoding tertiary structures has farreaching applications:

  • Drug discovery: Structurebased design of inhibitors (e.g., HIV protease inhibitors).
  • Disease mechanisms: Misfolded proteins in Alzheimer’s (amyloid-β) or prion diseases.
  • Biotechnology: Engineering enzymes for industrial catalysis or biofuels.

Emerging technologies like AIdriven prediction (AlphaFold2) complement experimental methods, accelerating structural annotation of entire proteomes.



Protein tertiary structure characterization remains a cornerstone of molecular biology. While Xray crystallography, NMR, and CryoEM each have tradeoffs, their synergy drives innovation. As techniques evolve, our ability to visualize and manipulate proteins will deepen, unlocking new frontiers in medicine and biotechnology.



References:

1. Schneider, M., Belsom, A., & Rappsilber, J. (2018). Protein Tertiary Structure by Crosslinking/Mass Spectrometry. Trends in biochemical sciences, 43(3), 157–169. https://doi.org/10.1016/j.tibs.2017.12.006

2. Nakane, T., Kotecha, A., Sente, A., et al.  (2020). Single-particle cryo-EM at atomic resolution. Nature, 587(7832), 152–156. https://doi.org/10.1038/s41586-020-2829-0
