Protein-Protein Interaction Methods: A Complete Guide for Researchers

Protein-protein interactions (PPIs) play an essential role in cellular function, governing processes such as signal transduction, enzyme regulation, and structural organization. To fully understand the mechanisms of biological systems, researchers rely on various experimental techniques to study PPIs with precision and depth. These methods differ in sensitivity, resolution, and applicability, allowing scientists to explore PPIs under different conditions, from in vitro biochemical studies to live-cell analysis. This article provides a comprehensive look at the major experimental approaches used to analyze PPIs, discussing their underlying principles, applications, and detailed experimental workflows.

Examine over 12K proteins at once with DIA proteomics

1. Co-Immunoprecipitation (Co-IP)

Co-immunoprecipitation (Co-IP) is a classical biochemical technique used to study protein-protein interactions in a near-native cellular context. This method exploits the specificity of antigen-antibody binding to capture target proteins and their interacting partners from a cell lysate. When the target protein forms a stable complex with other proteins, these interactors are co-precipitated and can be identified using Western blotting or mass spectrometry. Co-IP is widely employed in molecular and cellular biology to confirm direct and stable interactions but requires highly specific antibodies and appropriate control experiments to avoid false positives.

Experimental Workflow

1. Cell Lysis: Cells are lysed using a buffer containing detergents and protease inhibitors to preserve protein integrity. The lysate is incubated on ice for 30 minutes, followed by centrifugation at 12,000×g for 15 minutes to remove cell debris.

2. Pre-Clearing: To reduce non-specific binding, the lysate is incubated with Protein A/G beads for one hour at 4°C, after which the beads are removed.

3. Antibody Incubation: A specific antibody (1-5 μg) is added to the pre-cleared lysate and incubated overnight at 4°C to ensure efficient binding.

4. Bead Binding: Protein A/G magnetic beads are added and incubated for an additional two hours at 4°C to capture the immune complex.

5. Washing Steps: The beads are washed three times with high-salt buffer (500 mM NaCl) to remove weakly associated proteins.

6. Elution and Analysis: The protein complexes are eluted by boiling the beads in SDS-PAGE loading buffer for five minutes, and the supernatant is analyzed using Western blotting or mass spectrometry.

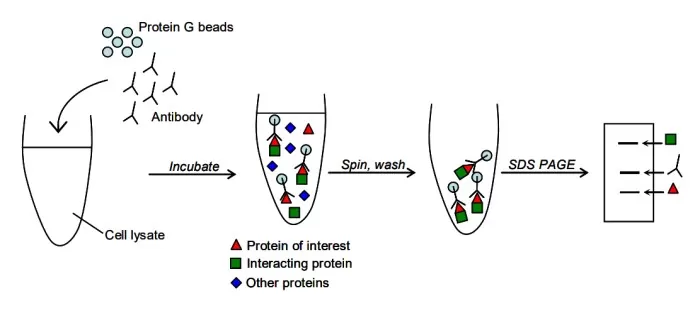

Principle of the co-immunoprecipitation technique (Wavreille, 2006)

2. Yeast Two-Hybrid (Y2H) System

The yeast two-hybrid (Y2H) system is a genetic method used to identify direct protein-protein interactions in living yeast cells. It is based on the modular structure of transcription factors such as GAL4, which consists of a DNA-binding domain (DBD) and an activation domain (AD). These domains are split and fused separately to two proteins of interest. If the proteins interact, the two domains come together, activating the expression of a reporter gene. Y2H is particularly useful for large-scale screening of binary protein interactions and is commonly used in protein interaction network studies.

Experimental Workflow

1. Plasmid Construction: The gene encoding the "bait" protein is fused with the GAL4 DBD, while the "prey" protein is fused with the GAL4 AD. These constructs are cloned into separate plasmids.

2. Yeast Transformation: The bait and prey plasmids are co-transformed into yeast cells using a lithium acetate transformation method.

3. Selection of Positive Transformants: Transformed yeast cells are plated on selective media (SD/-Leu/-Trp) to ensure successful incorporation of both plasmids.

4. Interaction Screening: Colonies are transferred to a stringent selection plate (SD/-Leu/-Trp/-His/-Ade) containing X-α-Gal. If the bait and prey interact, yeast cells grow and turn blue.

5. Validation: Interaction-positive clones are further verified using β-galactosidase assays or growth on histidine-deficient media.

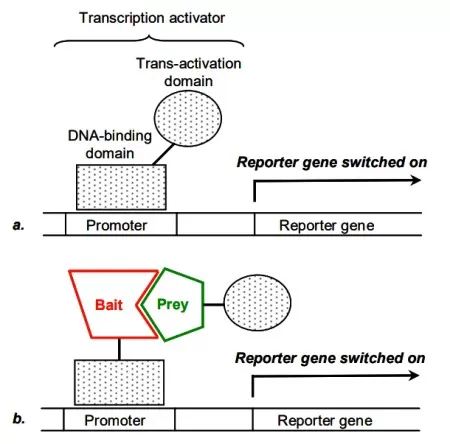

Principle of the yeast two-hybrid system (Wavreille, 2006)

3. Fluorescence Resonance Energy Transfer (FRET)

Fluorescence resonance energy transfer (FRET) is an optical technique for detecting molecular interactions in real time within living cells. It relies on energy transfer between two fluorophores (a donor and an acceptor) when they are within 1-10 nm of each other. Upon donor excitation, non-radiative energy transfer occurs to the acceptor, causing it to emit fluorescence. The efficiency of this transfer serves as an indicator of protein proximity and interaction dynamics.

Experimental Workflow

1. Fluorescent Tagging: The target protein is genetically fused to a donor fluorophore (e.g., CFP), while its binding partner is fused to an acceptor fluorophore (e.g., YFP).

2. Cell Transfection: The tagged constructs are introduced into mammalian cells (e.g., HEK293T) using lipofection, and cells are incubated for 24-48 hours.

3. Fluorescence Imaging: Using a confocal microscope, the donor fluorophore is excited at its specific wavelength (e.g., 433 nm for CFP), and the acceptor emission (e.g., 527 nm for YFP) is measured.

4. FRET Efficiency Calculation: The FRET efficiency is quantified using the formula ( E = 1 - (I_{DA} / I_D) ), where ( I_{DA} ) is donor intensity in the presence of acceptor and ( I_D ) is donor intensity alone.

5. Control Experiments: Separate expression of donor and acceptor fluorophores and protease treatment are used to verify specificity.

4. Tandem Affinity Purification-Mass Spectrometry (TAP-MS)

Tandem affinity purification (TAP) combined with mass spectrometry (MS) is a high-specificity technique for identifying protein complexes. It employs two consecutive affinity purification steps to isolate protein complexes while reducing contaminants. This method is widely used in proteomics research for mapping protein interaction networks and studying signaling pathways.

Experimental Workflow

1. Fusion Protein Construction: The protein of interest is genetically fused to a dual-affinity TAP tag and expressed in cells.

2. Cell Lysis: Cells are lysed, and the protein complexes are extracted under mild conditions to preserve interactions.

3. First Purification Step: The lysate is passed through an affinity column (e.g., streptavidin beads) to capture the TAP-tagged proteins and their interactors.

4. Elution: The bound proteins are gently eluted and subjected to a second purification step using a different affinity resin.

5. Mass Spectrometry Analysis: The purified protein complexes are digested into peptides and analyzed using LC-MS/MS.

6. Data Interpretation: Bioinformatics tools are used to identify protein components and map interaction networks.

5. Surface Plasmon Resonance (SPR)

Surface plasmon resonance (SPR) is an optical-based detection technology used to analyze biomolecular interactions in real-time, including protein-protein, protein-small molecule, and DNA-protein interactions. It works by monitoring changes in the refractive index at the interface of a metal-coated sensor chip, which occur when biomolecules bind to the immobilized ligand. This technique enables quantitative measurement of binding kinetics, including association rate (Kon), dissociation rate (Koff), and affinity constant (KD). SPR is widely applied in drug discovery for screening potential drug candidates, in biosensor development for detecting specific biomolecules, in proteomics research for studying interaction networks, and in disease diagnosis for detecting biomarkers.

Experimental Workflow

1. Chip Preparation: The sensor chip is coated with a metal thin film (typically gold), onto which the ligand (e.g., a protein or DNA) is immobilized via covalent coupling or biotin-streptavidin interactions.

2. Sample Injection: The analyte (target molecule) is injected into the microfluidic flow cell, allowing it to interact with the immobilized ligand. The interaction is monitored in real time.

3. Signal Monitoring: As binding occurs, changes in refractive index alter the angle of reflected light, generating a response curve called a sensorgram. This signal is continuously recorded to track binding kinetics.

4. Data Analysis: The binding kinetics are analyzed by fitting the sensorgram to mathematical models to determine key parameters such as Kon, Koff, and KD, providing quantitative insights into molecular interactions.

6. Bio-Layer Interferometry (BLI)

Bio-layer interferometry (BLI) is a real-time, label-free technique used to study biomolecular interactions. It is similar to SPR but uses optical interference instead of plasmon resonance. BLI measures changes in the thickness of a biomolecular layer on an optical biosensor when analytes bind to an immobilized ligand. This technique allows for high-throughput kinetic and affinity analysis of interactions such as protein-protein, protein-small molecule, and DNA-protein interactions. It is widely used in drug discovery, biosensor development, proteomics, and disease diagnostics, particularly for screening inhibitors or antibody-antigen interactions.

Experimental Workflow

1. Probe Activation: The biosensor probe (e.g., an Anti-GST antibody probe) is chemically activated using EDC/NHS to facilitate ligand immobilization.

2. Ligand Immobilization: The target protein (e.g., GST-fusion protein A) is immobilized on the biosensor probe through covalent attachment or affinity interactions.

3. Binding Detection: The probe is dipped into a solution containing the binding partner (protein B), and changes in optical interference patterns are recorded to measure the interaction in real time.

4. Dissociation Analysis: The probe is transferred to a buffer solution, and the dissociation of the bound complex is monitored by tracking signal decay over time. This step provides dissociation kinetics, helping to determine the stability of the interaction.

7. Crosslinking Mass Spectrometry (XL-MS)

Crosslinking mass spectrometry (XL-MS) is a structural proteomics technique that combines chemical crosslinking with mass spectrometry analysis to study protein-protein interactions and protein structures. It involves using a chemical crosslinker to covalently link interacting proteins at specific sites, followed by proteolytic digestion and mass spectrometry to identify the crosslinked peptides. XL-MS provides insights into protein complex compositions, conformational states, and spatial relationships between interacting proteins. It is widely used in protein interaction studies, structural biology, disease mechanism research, and drug target identification.

Experimental Workflow

1. Cell Lysis and Crosslinking: Cells expressing the target protein complex are lysed to release proteins, and a chemical crosslinker (e.g., DSS, BS3) is added to covalently link interacting proteins at reactive amino acid residues.

2. Enzymatic Digestion: The crosslinked protein complex is digested with trypsin to generate peptides, including crosslinked peptide pairs.

3. Mass Spectrometry Analysis: The resulting peptides are analyzed using high-resolution LC-MS/MS, and specialized software (e.g., pLink2) is used to identify crosslinked peptide pairs and pinpoint interaction sites (e.g., Lys-Lys linkages).

4. Structural Modeling: The crosslinking data are integrated with structural methods such as cryo-electron microscopy (cryo-EM) or molecular docking to construct models of protein complexes and predict their three-dimensional conformations.

8. Proximity-Dependent Biotinylation (PDB)

Proximity-dependent biotinylation (PDB) is an advanced method used to identify protein interaction partners in live cells. It utilizes an engineered biotin ligase (e.g., TurboID) that catalyzes biotinylation of proteins located within a 10-20 nm radius of the target protein. The biotinylated proteins are then affinity-purified using streptavidin beads and identified by mass spectrometry. This approach is highly effective for mapping protein interaction networks, studying protein localization, and analyzing dynamic changes in protein interactions.

Experimental Workflow

1. Fusion Protein Expression: The target protein is genetically fused to a biotin ligase (e.g., TurboID) and expressed in live cells through transient transfection or stable cell line generation. Cells are incubated for 24 hours to allow sufficient protein expression.

2. Cell Culture and Biotin Labeling: The transfected cells are maintained under optimal growth conditions, and biotin (50 μM) is added to the culture medium for 15-30 minutes to activate biotinylation.

3. Cell Lysis and Protein Extraction: The cells are lysed, and the biotinylated proteins are extracted using a mild lysis buffer to maintain interaction integrity.

4. Affinity Enrichment: The biotinylated proteins are captured using streptavidin magnetic beads, which have a high affinity for biotin. Unbound proteins are washed away.

5. Mass Spectrometry Analysis: The enriched biotinylated proteins are subjected to SDS-PAGE for separation, followed by protease digestion and LC-MS/MS analysis to identify the interaction partners.

6. Validation and Interpretation: The identified proteins are analyzed using bioinformatics tools to construct interaction networks and infer functional relationships.

Selecting the Best Technique for Your Research Needs

Understanding protein-protein interactions is essential for deciphering cellular mechanisms and advancing biomedical research. Each of the methods described here offers unique advantages for studying PPIs in different contexts. Co-IP remains a fundamental tool for confirming stable interactions, while Y2H is invaluable for large-scale screening. FRET allows real-time interaction analysis in living cells, and TAP-MS offers an in-depth characterization of protein complexes. SPR and BLI provide real-time kinetic analysis of molecular interactions, XL-MS reveals structural details of protein complexes, and PDB enables in vivo proximity mapping of interaction networks. By selecting the appropriate method or integrating multiple approaches, researchers can gain deeper insights into protein interactions, ultimately facilitating discoveries in drug development, disease mechanisms, and synthetic biology.

Reference

Wavreille, Anne-Sophie. SRC homology 2 domain proteins binding specificity: from combinatorial chemistry to cell-permeable inhibitors. Doctor's thesis, The Ohio State University, 2006
