Electron Ionization in GC-MS: The Gold Standard for Volatile Compound Analysis
Electron Ionization (EI) is one of the most widely used ionization techniques in mass spectrometry, particularly in gas chromatography-mass spectrometry (GC-MS). As a hard ionization method, EI efficiently fragments molecules, generating reproducible mass spectra that serve as unique molecular fingerprints. Its historical development, core working principles, and applications across various industries have established EI as a cornerstone of analytical chemistry. This article explores the evolution of EI technology, its fundamental ionization mechanisms, key applications, and a comparative analysis with other ionization techniques. By understanding EI's capabilities and limitations, scientists and researchers can leverage its potential for enhanced compound identification and structural elucidation.
The Evolution of Electron Ionization (EI) Technology
The origins of EI can be traced back to the early 20th century when mass spectrometry was in its infancy. Early EI sources had relatively simple designs, consisting of a heated tungsten filament and basic electrode configurations. Over time, technological advancements have refined EI sources, incorporating high-efficiency electron emitters such as rhenium-tungsten alloys and optimized electrode structures to enhance ionization efficiency and stability.
In recent years, research has further improved EI sources by employing novel electron emitters such as iridium filaments coated with yttrium oxide (Y₂O₃), significantly increasing electron emission current and ionization efficiency. These enhancements have strengthened EI’s role in modern analytical instruments, offering highly reproducible results for compound characterization across diverse applications. As a result, EI has remained a fundamental ionization technique, widely integrated into GC-MS instruments for routine and high-resolution analysis.
How Electron Ionization (EI) Works in GC-MS
EI is a gas-phase ionization technique that directly ionizes volatile and semi-volatile compounds. The process takes place in a high-vacuum environment, typically within an ionization chamber containing a filament, repeller electrode, collector electrode, and a magnetic field for electron trajectory control. The EI mechanism can be divided into three primary stages:
1. Sample Vaporization
Before ionization, the sample must be converted into the gas phase. This is typically achieved by heating liquid or solid samples to an appropriate temperature, allowing the analyte molecules to enter the ionization chamber in vapor form. The success of this stage is crucial, as only compounds that can be efficiently vaporized without decomposition are suitable for EI analysis.
2. Electron Impact Ionization
Once in the ionization chamber, the sample molecules interact with a high-energy electron beam. This beam is generated by heating a tungsten or rhenium-tungsten filament, which emits thermal electrons accelerated to an energy of approximately 70 eV. When these electrons collide with sample molecules, they transfer sufficient energy to ionize the molecules by ejecting an electron, leading to the formation of positively charged molecular ions (M⁺).
The excess energy from this collision often results in extensive fragmentation, producing characteristic fragment ions in addition to the molecular ion. This fragmentation pattern provides valuable structural information, as each compound generates a unique mass spectrum that can be compared with reference libraries such as the National Institute of Standards and Technology (NIST) database for rapid identification.
3. Ion Acceleration and Detection
After ionization, the positively charged ions are directed through an electric field that accelerates them into the mass analyzer. Magnetic or electrostatic fields guide and focus the ions, allowing their separation based on mass-to-charge ratio (m/z). The resulting mass spectrum provides insights into the molecular weight and structural characteristics of the sample, making EI particularly useful for compound identification and quantitative analysis.

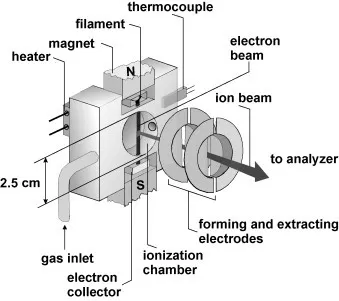

The electron impact ion source (Gluch K. et al., 2008)
Applications of EI in Various Scientific Fields
The broad applicability of EI has made it indispensable in numerous scientific and industrial fields. Its high ionization efficiency and ability to generate extensive fragmentation patterns make it an excellent choice for analyzing a wide range of volatile and semi-volatile compounds.
Environmental Analysis
EI is extensively used for detecting and quantifying volatile organic compounds (VOCs) and environmental pollutants. In air quality monitoring, EI-GC-MS enables the analysis of industrial emissions, vehicular exhaust, and hazardous air pollutants. Additionally, it plays a crucial role in water and soil contamination studies by identifying pesticide residues, hydrocarbons, and persistent organic pollutants.
Food Safety and Quality Control
In the food industry, EI-based mass spectrometry is employed for detecting flavor compounds, food additives, and contaminants. It is particularly useful for analyzing essential oils, aroma compounds, and potential adulterants in food products. Additionally, EI-GC-MS is utilized in the screening of pesticide residues and illegal food additives, ensuring compliance with food safety regulations.
Pharmaceutical and Drug Analysis
EI is a valuable tool in pharmaceutical research and drug development, aiding in the characterization of synthetic drugs, natural products, and metabolites. It provides detailed fragmentation patterns that help elucidate the structures of active pharmaceutical ingredients and impurities. In forensic toxicology, EI-GC-MS is a gold standard method for detecting drugs of abuse and metabolic byproducts in biological samples.
Petrochemical and Industrial Applications
The petrochemical industry heavily relies on EI-GC-MS for characterizing complex hydrocarbon mixtures, petroleum fractions, and polymer monomers. The ability to analyze volatile organic compounds in fuels and lubricants enables process optimization, quality control, and the detection of contaminants that may affect product performance.
Advantages and Limitations of Electron Ionization (EI)
One of the primary advantages of EI is its non-selective ionization capability, meaning that almost any compound that can be vaporized can be ionized, making it highly versatile. Additionally, EI offers high sensitivity and reproducibility, particularly at the standardized ionization energy of 70 eV, ensuring consistency across different analyses and laboratories. The use of well-established spectral databases further enhances its utility by enabling rapid compound identification.
Another key strength of EI is its ability to provide detailed structural information. The fragmentation patterns generated by electron impact allow for precise structural elucidation, making it an invaluable tool for researchers aiming to identify unknown compounds with high confidence. Furthermore, EI technology is mature and well-established, with stable performance and robust operational control, making it suitable for routine analysis in both research and industrial settings.
Despite its many advantages, EI also has some limitations. One major drawback is its requirement for volatile and thermally stable compounds. Non-volatile or thermally labile compounds may degrade before ionization, making them unsuitable for EI analysis. Additionally, in some cases, molecular ion peaks may be weak or absent due to excessive fragmentation, making it difficult to determine molecular weight information directly.
Another limitation is that EI predominantly generates positive ions, which restricts its ability to analyze compounds that would be better detected in negative ion mode. This constraint may necessitate complementary ionization techniques such as chemical ionization (CI) or electrospray ionization (ESI) for certain applications.
Comparing EI with Other Ionization Techniques
When compared to electrospray ionization (ESI), EI is better suited for gas-phase analysis, whereas ESI is ideal for liquid-phase samples. EI generates molecular ions and extensive fragment ions, while ESI primarily produces protonated or deprotonated molecular ions with less fragmentation. Additionally, unlike atmospheric pressure chemical ionization (APCI), which operates at atmospheric pressure, EI requires high vacuum conditions, making the instrumentation more complex but also more precise for structural elucidation.
Conclusion: The Enduring Relevance of EI in Mass Spectrometry
As one of the most established ionization techniques in mass spectrometry, Electron Ionization (EI) remains a fundamental tool for compound identification and structural analysis. Its wide applicability in environmental monitoring, food safety, pharmaceuticals, and petrochemical industries demonstrates its enduring relevance. While challenges such as volatility requirements and fragmentation-induced molecular ion loss exist, advancements in instrument design and data processing continue to enhance EI’s capabilities. As mass spectrometry evolves, EI will remain at the forefront of analytical science, providing researchers with powerful tools for decoding molecular structures with unmatched precision.
Reference
Głuch, K., Cytawa, J., & Michalak, L. (2008). Electron impact ionization of acetaldehyde. International Journal of Mass Spectrometry, 273(1-2), 20–23. doi:10.1016/j.ijms.2008.02.006
