Chromatographic Columns: The Backbone of Analytical Chemistry

When it comes to separating and analyzing complex mixtures, chromatographic columns play a pivotal role in the world of analytical chemistry. Whether you're a scientist, researcher, or industry professional, understanding how these columns work is essential for achieving accurate and reliable results. From pharmaceuticals to environmental monitoring, chromatographic columns are integral to the efficiency of techniques like High-Performance Liquid Chromatography (HPLC) and Ultra-High-Performance Liquid Chromatography (UHPLC).

In this comprehensive guide, we’ll dive deep into the types of chromatographic columns, their unique characteristics, and their wide range of applications. Whether you're choosing the right column for your next experiment or just exploring the fundamentals, this blog will provide the insights you need to make informed decisions. Let’s unlock the science behind chromatographic columns and discover how they drive the success of modern separation techniques!

• What are Chromatographic Columns?
• Anatomy of a Chromatographic Column
• Types of Chromatographic Columns
• Factors to Consider When Choosing a Column
• Tips for Column Maintenance and Optimization
• Applications of Chromatographic Columns
• Future Trends in Chromatographic Columns

What are chromatographic columns

Chromatographic columns are key components in chromatographic techniques used to separate mixtures into their individual components. These columns are filled with a material known as the stationary phase, through which the sample passes. The sample mixture interacts with the stationary phase as it moves through the column, and this interaction leads to the separation of different components based on their affinities for the stationary phase. The mobile phase—usually a liquid or gas—helps carry the sample through the column.

Columns play a crucial role in both analytical and preparative applications. In analytical chromatography, columns help detect and quantify compounds within a sample, making them essential for research, quality control, and environmental analysis. In preparative chromatography, larger quantities of material are processed to isolate and purify compounds for further use, such as in drug development or biochemical research. Their versatility makes chromatographic columns indispensable in numerous industries, from pharmaceuticals to food and beverage testing.

Anatomy of a Chromatographic Column

Chromatographic columns are composed of several key components that work together to ensure efficient separation of compounds. Understanding the anatomy of a chromatographic column is crucial for selecting the right one for specific applications and optimizing its performance. The main elements of a chromatographic column include the column body, stationary phase, and fittings, each playing an essential role in the overall process.

1. Column Body

The column body is the core structure of the chromatographic column. It typically consists of stainless steel or other durable materials like glass or plastic. Stainless steel columns are widely preferred due to their durability and ability to withstand high pressures, especially in high-performance liquid chromatography (HPLC) and ultra-high-performance liquid chromatography (UHPLC). The length, inner diameter, and thickness of the column body can vary depending on the application and the separation required. Longer columns generally provide better separation, though they may increase analysis time.

2. Stationary Phase

The stationary phase is packed inside the column and plays a crucial role in separating the components of the sample. It can be composed of materials such as silica gel, polymeric particles, or other specialized substances. The stationary phase can be either polar (as in normal-phase chromatography) or non-polar (as in reversed-phase chromatography), depending on the desired interaction with the sample. The size and surface area of the stationary phase particles also significantly affect the resolution of the separation, with smaller particles providing higher resolution but requiring more pressure for flow.

3. Fittings and End Caps

Fittings and end caps are the connectors at the ends of the column that ensure proper connection with the chromatography system. These components allow the mobile phase to flow through the column efficiently and help prevent leaks. Fittings also provide easy and secure attachment for detectors, pumps, and other instruments that interact with the column. The materials used in the fittings are generally designed to be chemically resistant, ensuring longevity and minimal contamination.

4. Column Packing and Porosity

In some columns, packing material is added to enhance separation efficiency. The packing material consists of small particles that increase the surface area available for interactions between the sample and the stationary phase. The porosity of the packing material affects the flow of the mobile phase through the column and the resolution of the separation. Higher porosity often leads to better separation but may require more optimized flow conditions.

5. Column Temperature Control

Some chromatographic systems incorporate temperature control to regulate the column's temperature. Temperature stability is essential for consistent separation, as fluctuations can affect the interactions between the sample and stationary phase. Many modern systems include built-in heaters or coolers to maintain a constant temperature for more precise control during the analysis.

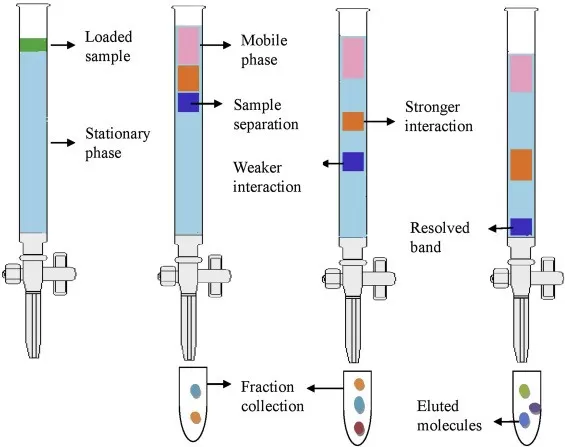

Systematic diagram of column chromatography (Nishi et al., 2021)

Types of Chromatographic Columns

Chromatographic columns come in various types, each designed for specific separation techniques based on the nature of the sample and the desired separation mechanism. Choosing the right column is crucial for achieving optimal results. The main categories of chromatographic columns include normal-phase columns, reversed-phase columns, ion-exchange columns, and size-exclusion columns.

1. Normal-Phase Columns

Normal-phase columns are ideal for separating polar compounds. These columns typically use silica or alumina as the stationary phase, which has a high affinity for polar compounds. The mobile phase in normal-phase chromatography is generally non-polar solvents such as hexane, chloroform, or dichloromethane, which do not interact strongly with the stationary phase. As a result, polar analytes interact more with the stationary phase and elute later than non-polar compounds. This type of column is commonly used for separating lipids, sterols, and other polar organic compounds.

2. Reversed-Phase Columns

Reversed-phase columns feature a non-polar stationary phase, typically C18 (octadecyl) or C8 (octyl) silica, which has a strong affinity for hydrophobic compounds. The mobile phase in reversed-phase chromatography consists of polar solvents, often a mixture of water with organic solvents like methanol or acetonitrile. Hydrophobic compounds in the sample will interact with the non-polar stationary phase and be retained longer, while more polar compounds will elute faster. This method is highly versatile and widely used for separating peptides, proteins, pharmaceuticals, and metabolites.

3. Ion-Exchange Columns

Ion-exchange columns are used for separating charged compounds, such as proteins or nucleic acids, based on their charge. The stationary phase typically consists of charged groups, like sulfonic acid (for cation-exchange) or quaternary ammonium groups (for anion-exchange). The mobile phase is usually an aqueous buffer solution, often containing salts such as NaCl or KCl, which helps to elute the ions based on their charge interactions with the stationary phase. Ion-exchange chromatography is essential for protein purification, nucleic acid separation, and many other bioanalytical applications.

4. Size-Exclusion Columns (Gel Filtration)

Size-exclusion chromatography (SEC) is used for separating molecules based on their size. The stationary phase consists of porous gel beads, made from materials like dextran, agarose, or polymer resins. The mobile phase is typically an aqueous buffer such as phosphate-buffered saline (PBS) or other water-based solutions, depending on the specific application. In SEC, larger molecules are excluded from the pores of the stationary phase and elute first, while smaller molecules enter the pores and are retained longer. This column type is especially useful for analyzing proteins, polymers, and nanoparticles.

5. Affinity Columns

Affinity chromatography is highly selective, used to separate biomolecules based on specific interactions with ligands. The stationary phase is functionalized with a ligand, such as an antibody, enzyme, or metal ion, that binds the target molecule. The mobile phase, typically an aqueous buffer or salt solution, is adjusted to disrupt the binding interactions. For example, elution may be achieved by introducing a competitor ligand or changing the salt concentration or pH. Affinity columns are extensively used in protein purification, antibody isolation, and other applications that require selective separation of biomolecules.

6. Hydrophobic Interaction Columns

Hydrophobic interaction chromatography (HIC) separates molecules based on their hydrophobicity. The stationary phase is modified with hydrophobic groups, such as alkyl chains, or may consist of hydrophobic silica. The mobile phase is an aqueous solution that often contains high concentrations of salts, such as ammonium sulfate, which promote hydrophobic interactions. As the salt concentration is gradually reduced, the hydrophobic interactions between the stationary phase and the analytes weaken, allowing hydrophobic compounds to elute. HIC is frequently used for protein purification and other biochemical separations where hydrophobicity plays a key role.

7. HILIC (Hydrophilic Interaction Chromatography) Columns

HILIC columns are designed for separating polar and hydrophilic compounds. The stationary phase is polar, often consisting of bare silica or bonded groups like amides or diols. The mobile phase typically includes polar organic solvents like acetonitrile combined with a small proportion of water or aqueous buffer. Polar analytes interact with the hydrophilic stationary phase and are retained longer, while non-polar analytes elute more quickly. HILIC is particularly effective for separating carbohydrates, nucleotides, and other hydrophilic metabolites, making it a valuable tool in metabolomics and pharmaceutical research.

8. Chiral Columns

Chiral chromatography is used to separate enantiomers, which are mirror-image isomers that cannot be superimposed. The stationary phase contains chiral selectors, such as cyclodextrins, proteins, or chiral silica, that interact differently with each enantiomer. The mobile phase usually consists of organic solvents, such as methanol, acetonitrile, or ethanol, mixed with water to facilitate the separation process. Chiral columns are crucial in the pharmaceutical industry, where the chirality of molecules influences their biological activity and effectiveness.

Factors to Consider When Choosing a Column

Selecting the right chromatographic column is critical to achieving effective separation, sensitivity, and reproducibility in chromatography. Several factors must be considered based on the specific application, sample properties, and analytical requirements.

1. Nature of the Analyte

The properties of the analyte are crucial when selecting a chromatographic column. Polar compounds are effectively separated using normal-phase columns, which have a polar stationary phase and a non-polar mobile phase, allowing strong interactions with the stationary phase. Similarly, HILIC (Hydrophilic Interaction Liquid Chromatography) columns are ideal for very polar analytes, especially small molecules like sugars or polar metabolites. These columns feature a hydrophilic stationary phase and typically use a polar mobile phase with high organic content, such as acetonitrile-water mixtures, for enhanced retention of polar compounds. In contrast, reversed-phase columns work well for non-polar or moderately polar analytes, utilizing a non-polar stationary phase and a polar mobile phase. For charged molecules like amino acids, ion-exchange columns are suitable, while large biomolecules such as proteins or polymers are best separated by size-exclusion chromatography, which relies on molecular size rather than chemical interactions.

2. Stationary and Mobile Phases

The stationary and mobile phases directly influence the efficiency and outcome of chromatographic separations. Silica-based stationary phases are popular for both reversed-phase and normal-phase chromatography due to their high efficiency, while polymer-based phases are more stable under extreme chemical conditions. In terms of mobile phases, normal-phase chromatography uses non-polar solvents like hexane or chloroform, whereas reversed-phase methods employ polar solvents such as acetonitrile or methanol. Matching the analyte’s properties with the appropriate stationary and mobile phases ensures optimal retention and resolution.

3. Practical Considerations

Several practical aspects also influence column selection. Compatibility with the chromatographic system is crucial—UHPLC systems require columns that can withstand higher pressures and accommodate smaller particle sizes for faster and more precise separations. In contrast, conventional HPLC systems are limited to larger particle sizes and lower pressures. Temperature and pH stability of the column material must also be considered; silica-based columns are less stable under extreme conditions, while polymer-based columns offer broader compatibility. Additionally, cost and availability play a role, especially for routine analyses, where balancing performance with budget constraints is key.

Tips for Column Maintenance and Optimization

Proper maintenance and optimization of chromatographic columns are essential for extending their lifespan, ensuring consistent performance, and achieving reliable results. Following best practices for column care can help minimize issues such as poor resolution, increased backpressure, and column degradation.

1. Routine Care and Handling

Handling columns with care is crucial. Always flush the column with an appropriate solvent after use to remove residual analytes, buffers, or salts that can cause clogging or contamination. For reversed-phase columns, flushing with 50:50 water and organic solvent (e.g., acetonitrile) is a common practice. Avoid abrupt changes in pressure, temperature, or solvent composition, as these can damage the stationary phase or column packing. Ensure that all solvents and samples are filtered to prevent particulate matter from entering the column.

2. Optimizing Column Usage

Optimize operating conditions to match the column's specifications. Use recommended flow rates, pressures, and temperature ranges provided by the manufacturer. Exceeding these limits can lead to premature wear or damage. For gradient elution methods, allow enough time for the column to re-equilibrate between runs. Additionally, using a guard column is a good practice to protect the analytical column from contaminants and particulate matter, extending its life.

3. Troubleshooting Common Issues

Recognizing and addressing common column problems early can prevent further damage. If you observe high backpressure, flush the column with compatible solvents in a stepwise manner to remove blockages. For declining resolution or peak tailing, consider cleaning the column with manufacturer-recommended procedures, such as flushing with stronger solvents or specialized cleaning agents. In cases where cleaning is ineffective, the column may need to be replaced. Keeping a performance log of retention times, peak shapes, and pressure readings helps monitor column health over time.

4. Storage and Long-Term Maintenance

When storing columns for extended periods, use appropriate storage solvents recommended by the manufacturer to preserve the stationary phase. For reversed-phase columns, storage in 100% organic solvent such as acetonitrile is typically advised. Ensure that both ends of the column are tightly sealed to prevent drying out, which can damage the stationary phase. Always store columns in a cool, dry place, away from direct sunlight and extreme temperatures.

Applications of Chromatographic Columns

Chromatographic columns are indispensable tools across a wide range of industries, enabling the precise separation, identification, and quantification of complex mixtures. Their versatility and adaptability make them vital for both research and applied sciences.

1. Pharmaceuticals and Biopharmaceuticals

Chromatographic columns are essential in the pharmaceutical industry, ensuring the safety, efficacy, and quality of drugs. Reversed-phase columns are predominantly used for analyzing active pharmaceutical ingredients (APIs) and impurities, meeting stringent regulatory requirements. Biopharmaceuticals, such as monoclonal antibodies and therapeutic proteins, are analyzed using size-exclusion chromatography (SEC) to evaluate molecular size, aggregation states, and purity, supporting drug development and quality assurance.

2. Food and Beverage

In the food and beverage industry, chromatography helps monitor contaminants, additives, and nutritional components. Normal-phase and HILIC columns are commonly employed for polar compounds like sugars, amino acids, and vitamins, while reversed-phase columns are ideal for non-polar compounds such as pesticides, lipids, and flavor compounds. This ensures compliance with safety standards and enhances product quality.

3. Environmental Analysis

Environmental monitoring heavily relies on chromatographic columns to detect and quantify pollutants in water, soil, and air. Reversed-phase and ion-exchange columns are used for analyzing organic pollutants, heavy metals, and toxins. This enables regulatory agencies and researchers to assess environmental risks and implement remediation strategies.

4. Petrochemical Industry

In the petrochemical sector, chromatography aids in refining processes and quality control. Normal-phase and reversed-phase columns are used to separate and quantify hydrocarbons, such as alkanes and aromatic compounds. These columns are integral in optimizing fuel formulations, monitoring production efficiency, and ensuring compliance with industry standards.

5. Clinical Diagnostics and Biotechnology

In clinical diagnostics, chromatographic columns are indispensable for metabolite analysis, disease biomarker identification, and therapeutic monitoring. Reversed-phase and HILIC columns are often employed for small molecule separation, while affinity and ion-exchange columns are used for proteins and peptides. Similarly, in biotechnology, chromatography is used for downstream processing, including purification of recombinant proteins and monoclonal antibodies.

6. Cosmetics and Personal Care

Chromatography is increasingly used in the cosmetics industry for quality control and formulation analysis. Reversed-phase columns help analyze active ingredients, preservatives, and fragrance compounds, ensuring product stability and compliance with regulatory standards.

Future Trends in Chromatographic Columns

The field of chromatography is evolving rapidly, driven by the demand for higher efficiency, greener methods, and broader applications. Several trends are shaping the future of chromatographic columns.

1. Advances in Column Technology

Innovations in stationary phase materials, such as hybrid silica-organic polymers, are enhancing column stability and selectivity. These materials offer superior chemical resistance, enabling separations under extreme pH and temperature conditions. Additionally, smaller particle sizes in UHPLC columns are improving resolution and reducing run times, making chromatographic processes faster and more efficient.

2. Green Chromatography

Sustainability is becoming a major focus in chromatography. Researchers are developing columns that require lower solvent consumption, minimizing waste and environmental impact. HILIC columns, for example, are gaining popularity for their ability to operate with high organic solvent content, which reduces the need for large volumes of water.

3. Tailored Columns for Specific Applications

Customized columns designed for niche applications are on the rise. For instance, lipidomics and metabolomics studies are driving the development of specialized columns like C30 columns, which offer enhanced selectivity for lipid separation. Similarly, biopharmaceutical research is benefiting from columns tailored for protein separations, such as affinity and mixed-mode columns.

4. Integration with Emerging Technologies

The integration of chromatography with advanced analytical tools, such as mass spectrometry (MS) and artificial intelligence (AI), is transforming column usage. Columns optimized for high-sensitivity MS detection are enabling ultra-trace analysis in fields like clinical diagnostics and forensic science. AI-driven algorithms are also being used to optimize column selection and method development, further enhancing efficiency.
